Equotip Portable Hardness Tester

Portable Hardness Testing Machines – Equotip 550

  • Equotip enables portable hardness inspection of almost any object, polished parts and heat-treated surfaces.
  • The hardness measurements are made by using the dynamic rebound testing method according to Leeb, the static Portable Rockwell hardness test and the Ultrasonic Contact Impedance (UCI) method.
  • The rugged Swiss-made metal NDT hardness testers are designed for portable hardness testing in the lab, in the workshop, at production facilities or on site.
Equotip 550 Leeb D Equotip 550 UCI Equotip 550 Rockwell

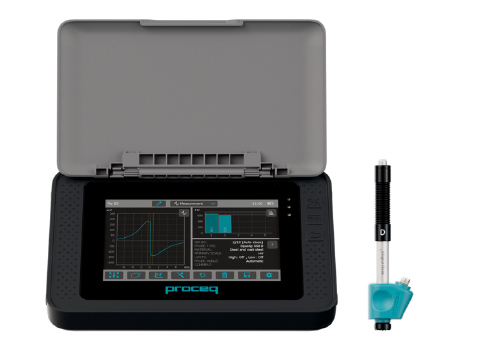

  • Based on the dynamic (rebound) method
  • Broad Hardness Scales Coverage (HV, HB, HRC, HRB, HRA, HS)

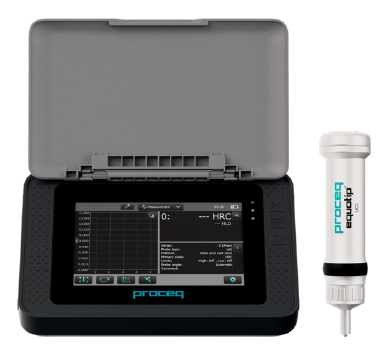

  • The UCI (Ultrasonic Contact Impedance) method uses the same pyramid-shaped diamond as a conventional Vickers hardness tester.
  • Measurements in HV with automatic integrated conversions to HB, HRA, HRB, HRC and many more common scales
  • Particularly suited for scratch sensitive and polished parts or on thin parts, profiles and pipes
  • Traditional Rockwell static test method
  • Measurements in HRC and HV with automatic integrated conversions to HB, HRA, HRB
    and many more common scales
  • Standards – ASTM A956/A370, ISO EN 16859, DIN 50156,
  • Conversion Standard – ASTM E140
  • Various probes – D/DC, DL, S, E, G, C
  • Standards – ASTM E1038, DIN 50159.
  • Conversion Standard – ASTM E140, ISO 18265
  • HAZ feature is specially designed for one of the most often applications with UCI, the evaluation of heat
    affected zones of welds.
  • Standards – ASTM E1038, DIN 50159,
  • Conversion Standard – ASTM E140, ISO 18265
  • HAZ feature is specially designed for one of the most often applications with UCI, the evaluation of heat
    affected zones of welds.

Applications

  • O&G – Flanges
  • Automotive – Engine Blocks, Gears, Shafts
  • Aerospace – Cast objects, landing gears

Applications

  • O&G – Weld, Base Material & HAZ
  • Automotive – shafts & gears
  • Aerospace – Turbine Blades

Applications

  • O&G – pressure vessels, Flanges, pipes, Wellhead Equipment
  • Automotive – Panels, Shafts, Brake Systems,
DOWNLOAD
DOWNLOAD
DOWNLOAD

Portable Hardness Testing Machines – Equotip Bambino2/Piccolo2/Live/UT8000

  • Equotip enables portable hardness inspection of almost any object, polished parts and heat-treated surfaces.
  • The rugged Swiss-made metal NDT hardness testers are designed for portable hardness testing in the lab, in the workshop, at production facilities or on site.
Equotip Piccolo2 / Bambino2 Equotip Live Leeb / UCI Flaw Detection – UT8000

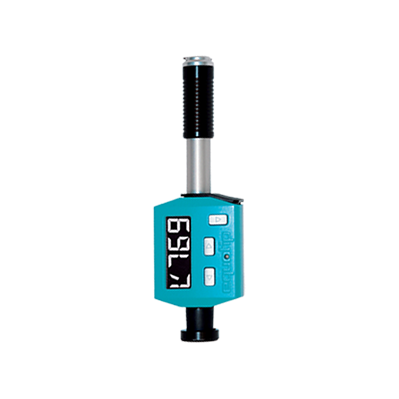

  • Based on Leeb Rebound Method
  • Metal hardness can be displayed in different hardness scales: HL (Leeb), HRC (Rockwell C), HB (Brinell), HV (Vickers) and so forth.

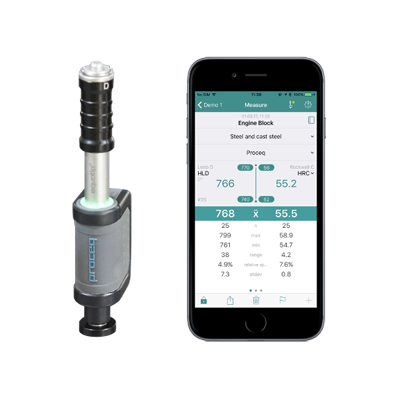

  • Ultra-portable, intelligent Leeb D/UCI probe,
    coupled to IoT and storage data backup ecosystem with a clean user-interface. Software enables you to share and access the data from anywhere.

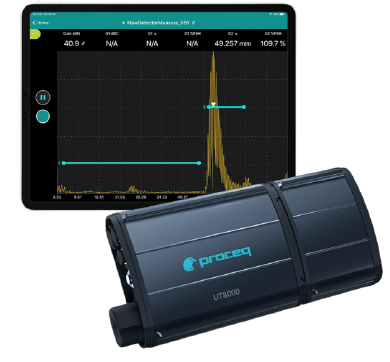

  • Portable ultrasound flaw detector for different types of material and components. Delivering fully traceable inspection data and rapid report creation.
  • -Standards: ASTM A 956, ASTM E 140, ASTM A 370, ISO 16859, DIN 50156
  •  Measuring Range – 150-950 HLD
  • Conversions 80-955 HV, 81-678 HB, 20-70 HRC, 38-102 HRB, 30-100 HS (Equotip Piccolo 2 only: 274-2193 N/mm2)
  • Measuring accuracy ± 4 HLD / HLDL (0.5% at 800 HLD / HLDL)
  • Native Scale HLD
  • Available Scales HB, HV, HRB, HRC, HS, MPA
  • Display – Any compatible iOS device (iPod Touch, iPhone iOS 9.0 and higher)
  • Memory – Memory of the iOS device
  • Measuring Range 150 – 950 HL
  •  Measuring Accuracy ± 4 HL (0.5% at 800 HL)
  • Processing Unit / Sensor
  • Configuration: 1 UT channel
  • Bandwidth: 0.2 – 20MHz
  • Display – Any compatible Apple® iPad (iOS 11 and higher)
  • Supported Scans: A-Scan, Grid
  • Measurements: Path length, depth, surface distance, DAC, AWS
    Software / Workspace App
  •  Automated calibration: Velocity, zero offset
  • Test modes: Pulse echo, dual, through transmission or grid
Applications: Heat treatment, Automotive, Cold Rolling etc
Applications: Heat treatment, Automotive, Cold Rolling etc
DOWNLOAD
DOWNLOAD
DOWNLOAD

Portable Hardness Testing Machines – Paper/Film/Foil Roll Hardness

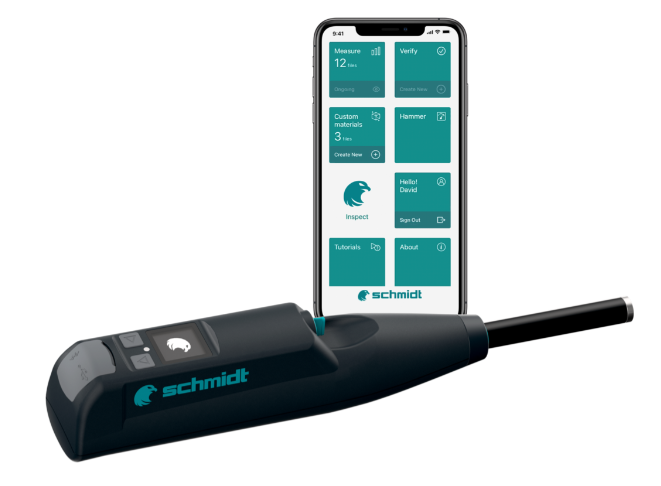

Equotip 550 Leeb U PaperSchimdt
  • Diagnose roll imperfections, hardness inconsistencies and uneven
    Winding
  • Roll hardness testing using rebound hammer technology
  •  Accurate profiling with unmatched performance
  •  High quality design for increased durability
  •  Flexible data handling for PC, mobile app, or portable printer
  • Display 7” color display 800×480 pixels
  • Memory Internal 8 GB flash memory
  •  Native Scale – HLU
  • Display – Analog & backlit digital (100 x 100 pixels, graphic)
  • Measurement range – ~17-80 R
  • Memory – Instrument memory > 20’000 impacts
  • Standards compliance – TAPPI T834 / TAPPI TIP 1004-01
Applications: Large/Midsize/Small Paper Rolls, Thin Film Rolls, Foil Rolls, Coated Rolls
Applications: Large, midsize and small paper rolls / Leather / Coated rolls / Lottery paper / Tissue paper
